Telehandler 7030

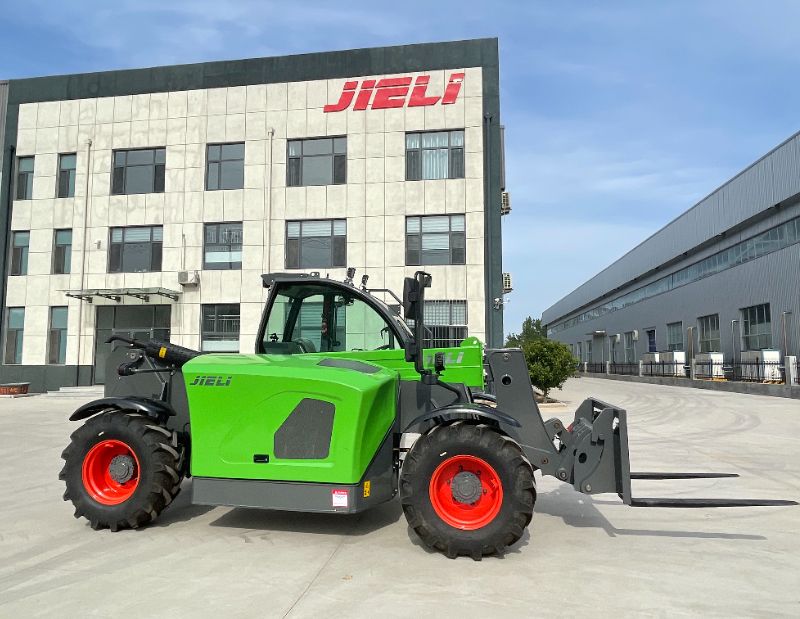

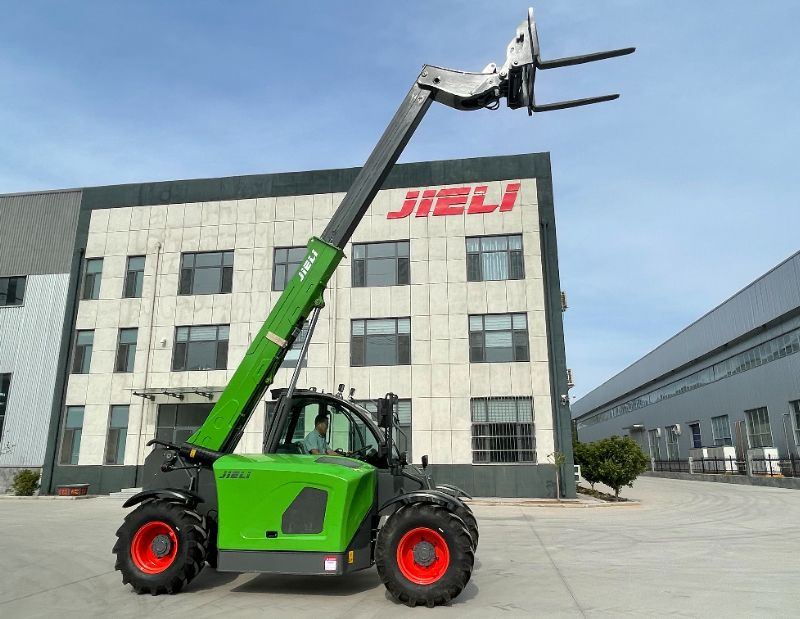

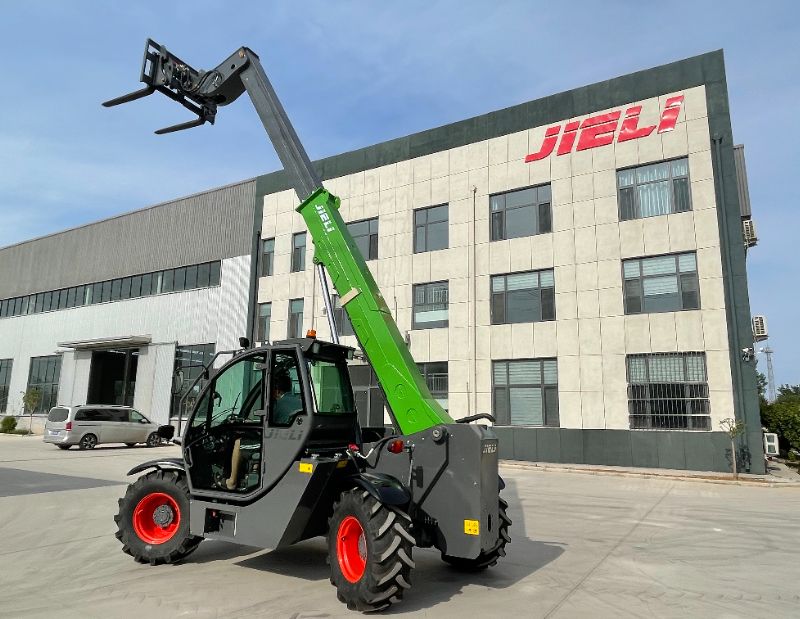

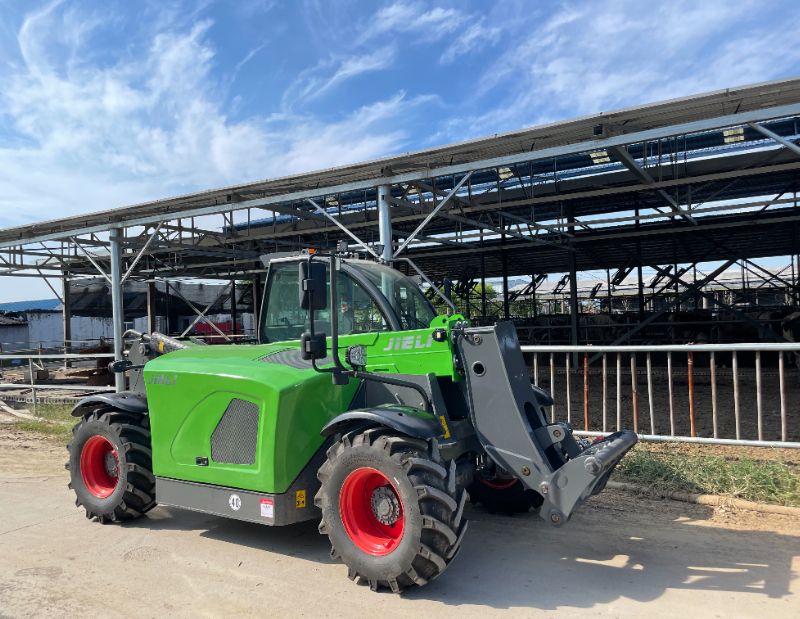

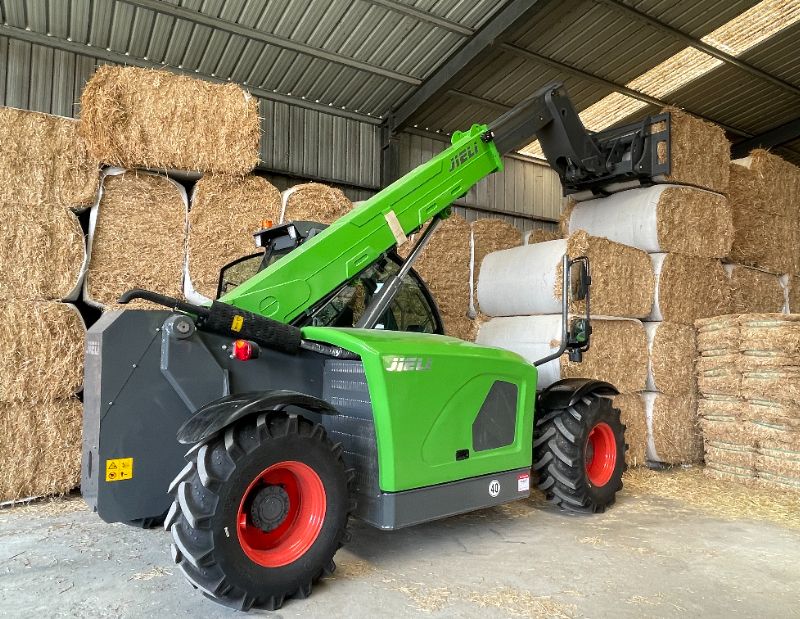

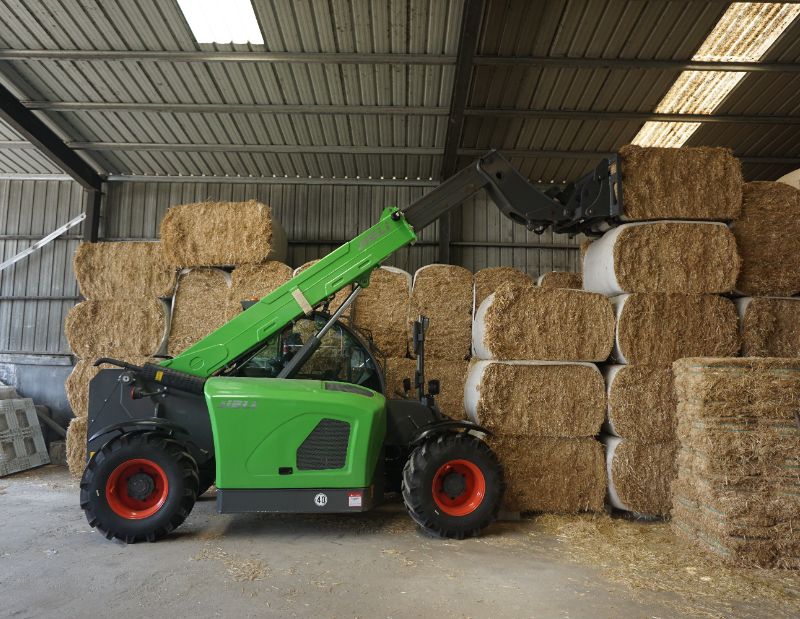

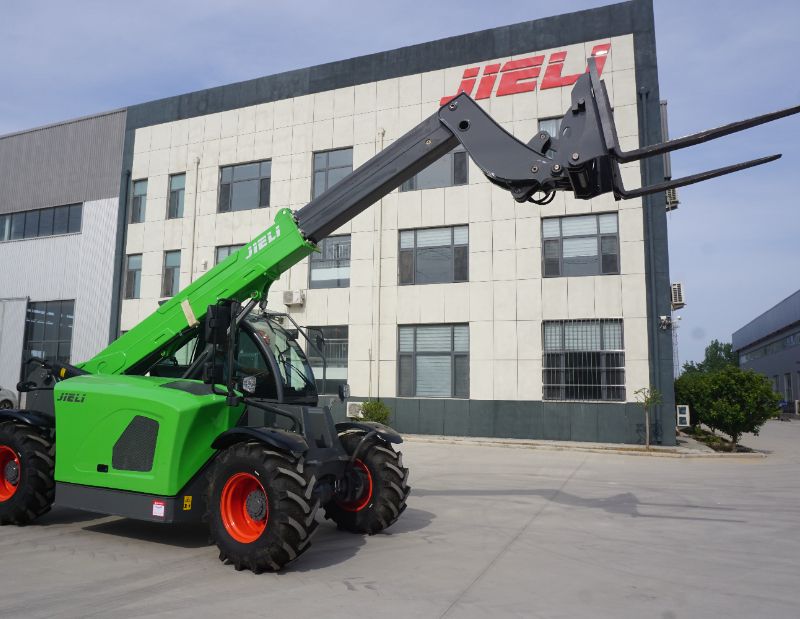

Telehandler 7030 has a lifting capacity 3000kgs a maximum lifting height of 7 meters

INQUIRE NOW

Features

Specification

Features

Telehandler 7030 has a lifting capacity 3000kgs a maximum lifting height of 7 meters

2-wheel, 4-wheel, crab, three modes of operation, the entire frame is reasonably designed.

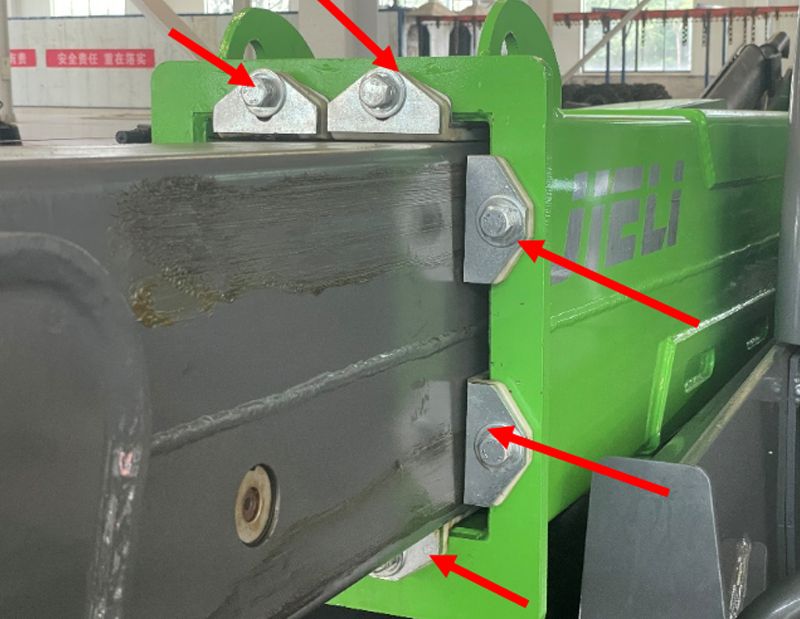

High-strength steel plates be used on the telescopic boom and Yield strength 1000 megapascals. inner lining plate bent at 90 degrees with 90° iron sheet for convenient adjustment

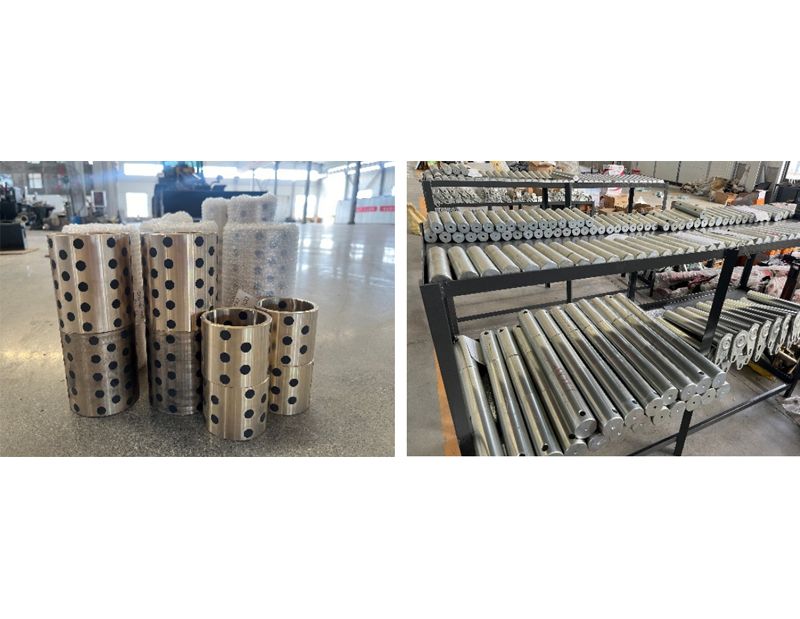

Graphite bushings are wear-resistant and do not require grease, increasing service life.

Made of 40Cr material, with quenching and tempering + medium frequency treatment, it is more sturdy and durable than ordinary pins.

Overloading Monitoring and Warning System

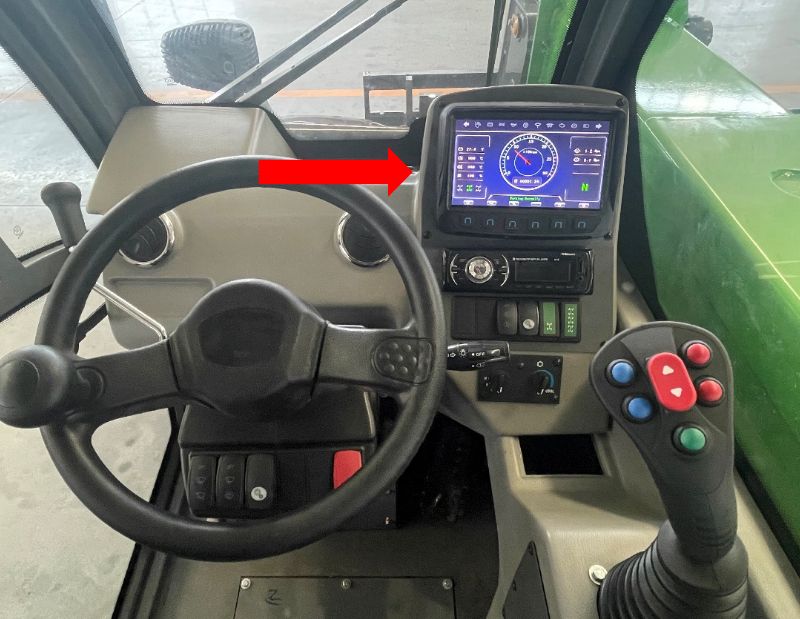

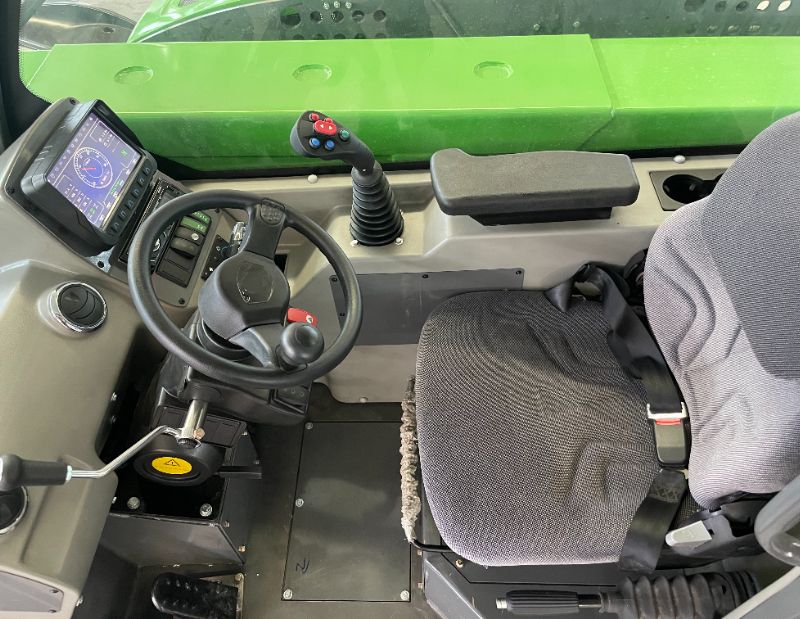

Luxury cab（heater and preheater, Adjustable seat, Adjustable instrument, radio, fan, extinguisher, Bluetooth, USB connection）

Specification

If you want to more, pls contact us

Standard configuration:

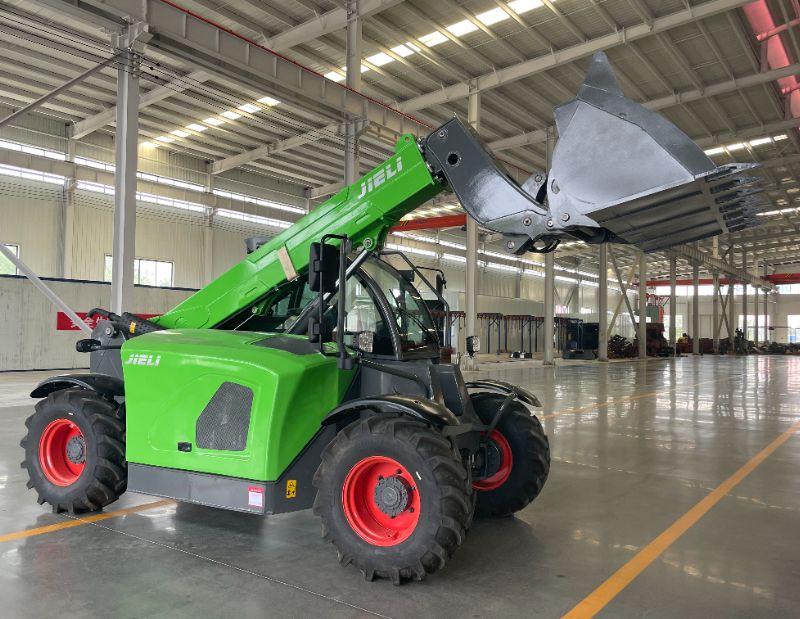

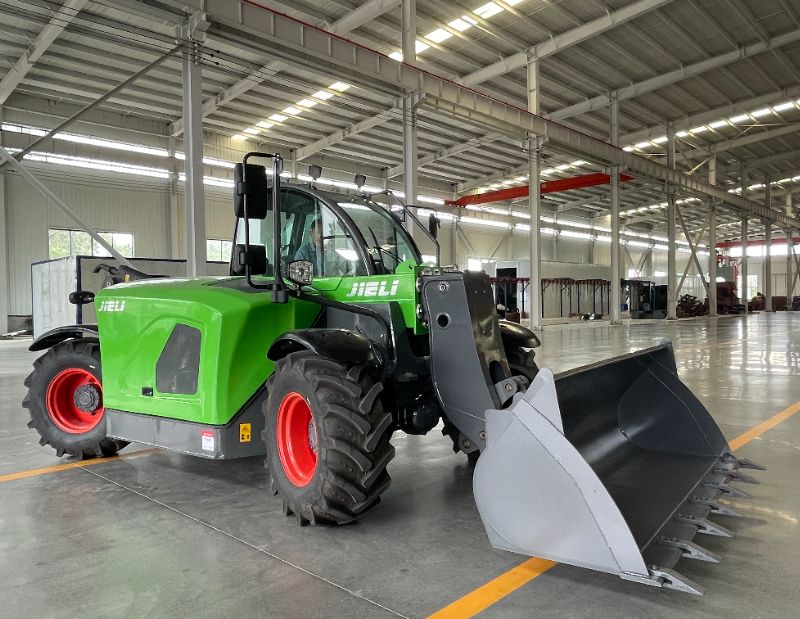

Yuchai with Turbocharger, 77.3KW, 16/70-20 tire, 4-HYDRAULIC electric joystick (forwarder and backward, speed and low speed), electric quick hitch, rearview camera, ELECTRICAL TELESCOPIC ARM, 4WD, 3 -drive style, Hydraulic torque converter drive (2 forward, 2 backwards), full automatic, standard bucket (1.1m3), pallet fork, Overloading Monitoring and Warning System adjustable instrument, Adjustable seat, disc brake system, engine preheating heater, bucket can be level automatic, waterproof plugin, back sound, radio, fan, extinguisher, window hammer, 220v engine heater lifting height mas is 7000mm, dump height is 6000-7000mm, speed40km/h, lifting capacity is 3000kgs, operation weight is 7000kgs

Telehandler 7030

TECH DATE OF TELEHANDLER JL7030
Performance	rated loading (kg)			3000
	overall weight (kg)			7000
	rated bucket capacity (CBM)			1.1
	maximum tractive force (kN）			45
	maximum breakout force (kN）			35
	maximum grade ability（°）			35
	most lift height（mm）			7000
	maximum dump height（mm）			6000
	maximum dump height（mm）			3500
	maximum dump reach（mm）
	overall dimension (L×W×H) （mm）			565021802470
	minimum turning radius（outside of wheels）（mm）			3800
Engine	Model		CHANGCHAI 4G33 /YUNNEI EURO V/YAMMAR EURO V/CUMMINS EPA 4
	type			lnline water cooled, four stroke
Transmission system	torque converter			280
	gearbox mode		Power shift normally engaged straight gear
	gear shift		Mechanical, 2forward shift 2 reverse shift and another more high speed
	maximum speed			40km/h
Drive axles	main reducing mode			Bevel gear grade l reduction
	wheel base (mm)			3100
	wheel tread(mm)			1780
	ground clearance(mm)			330
Hydraulic system	system working pressure (Mpa)			20
	boom lifting time (s)			6.4
	total time (s)			11.5
	fuel tank capacity (L)			120
Brake system	service brake		hydraulic brake, disc brake
	parking brake	Manual disc brake
Tyre	type specification			16/70-20
	front tyre pressure （kPa）			350
	rear tyre pressure （kPa）			350
