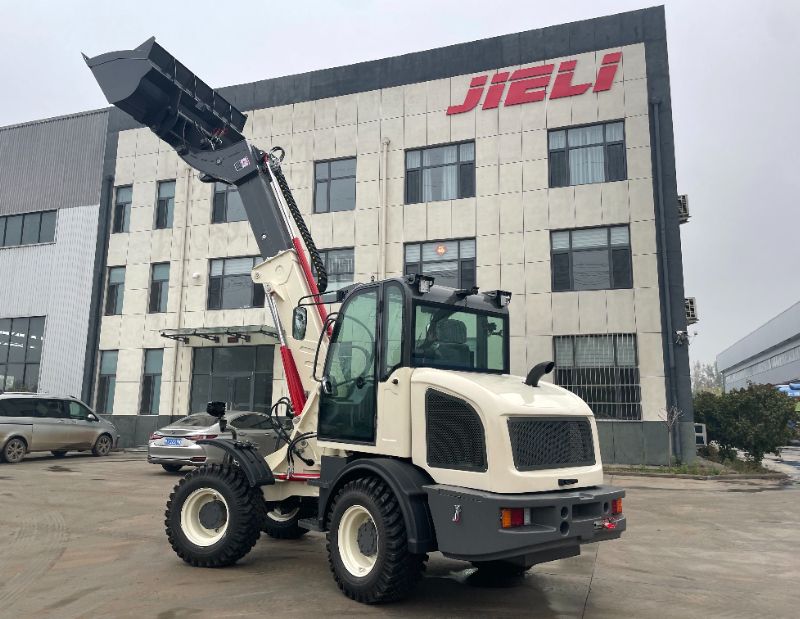

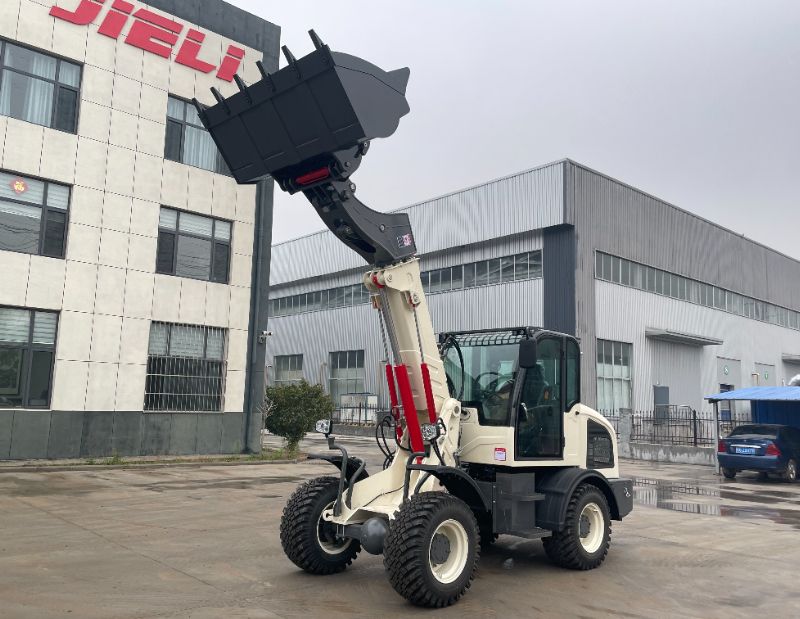

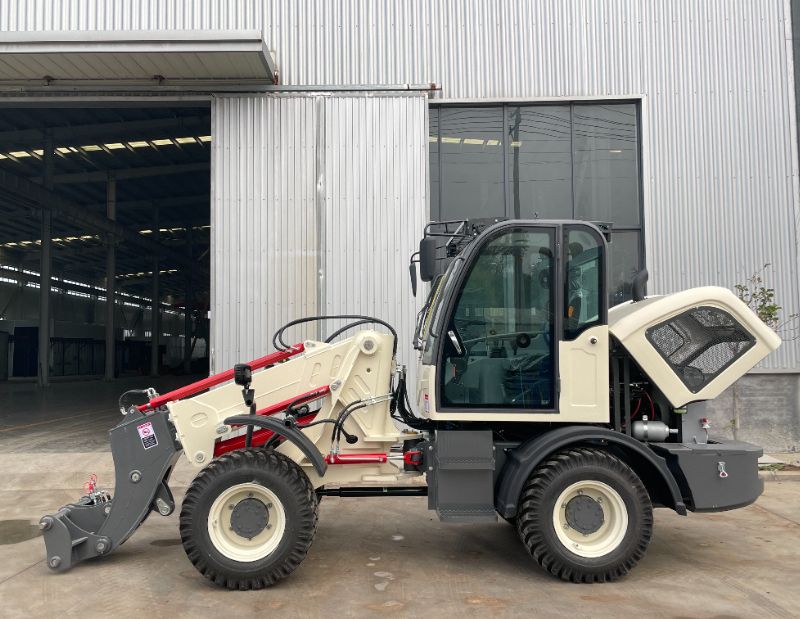

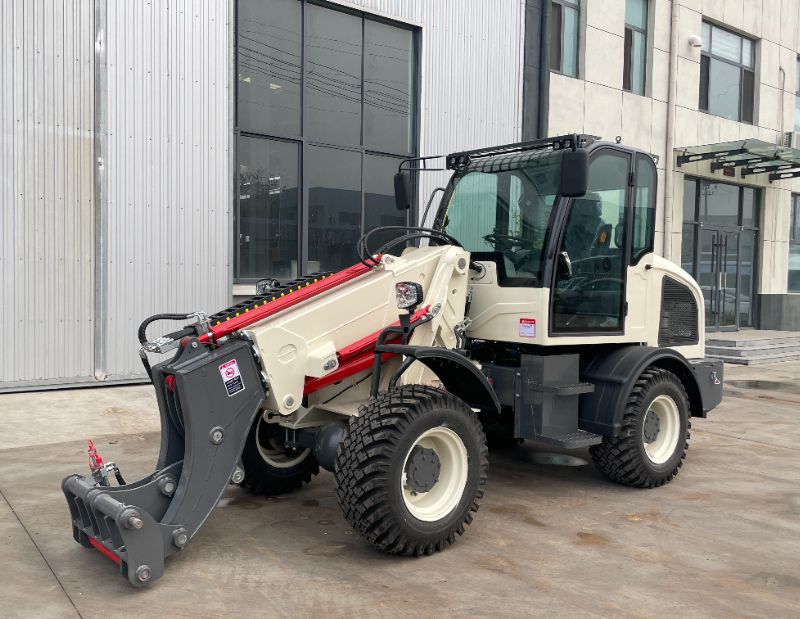

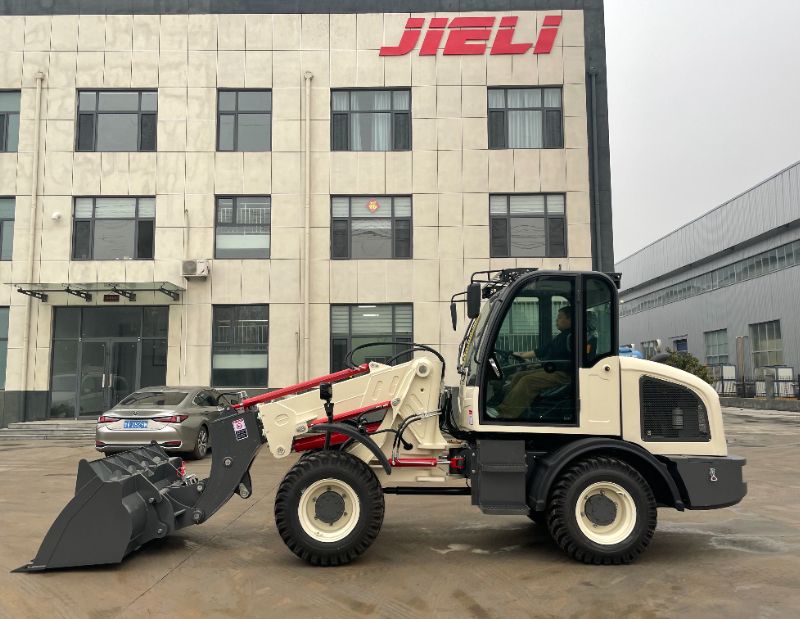

Telescopic Loader 18T

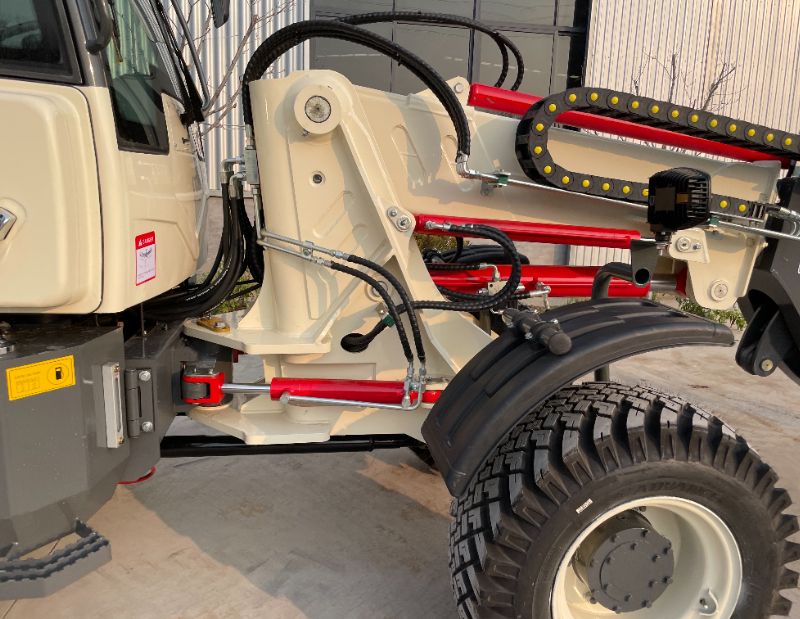

With the articulated pendulum joint, all four wheels maintain traction even on uneven terrain. This increases the productivity of the machine and gives the driver optimal control.
• With the articulated pendulum joint, all four wheels maintain traction even on uneven terrain. This increases the productivity of the machine and gives the driver optimal control.
The optimal ratio of articulation and oscillation angle ensures a high level of grip on the ground. This makes the machine easy to maneuver.

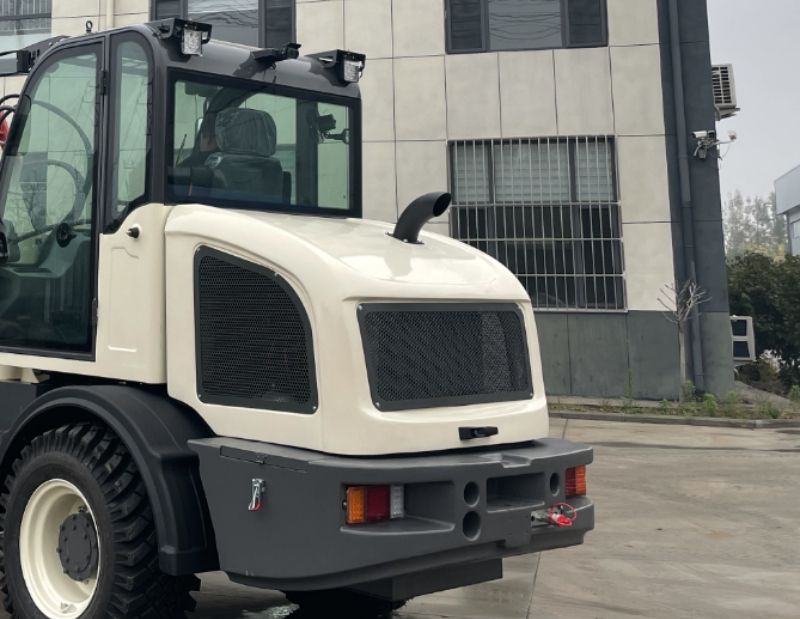

Iron cast counterweight, looks more neo-modern, It makes the appearance of the entire vehicle have higher aesthetic value and visual enjoyment, to attract more customers' attention and provide more added value for customers.

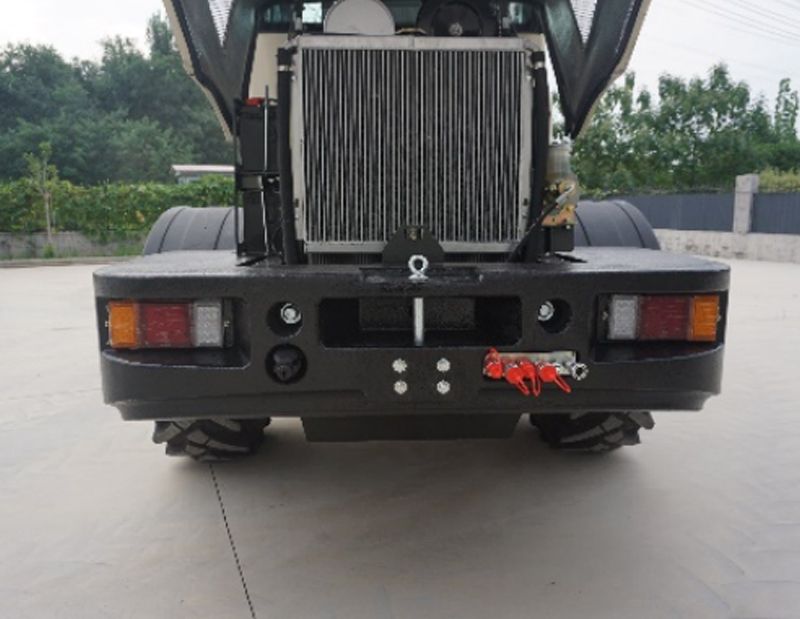

More hydraulic line to rear to meet more requirements for the customers

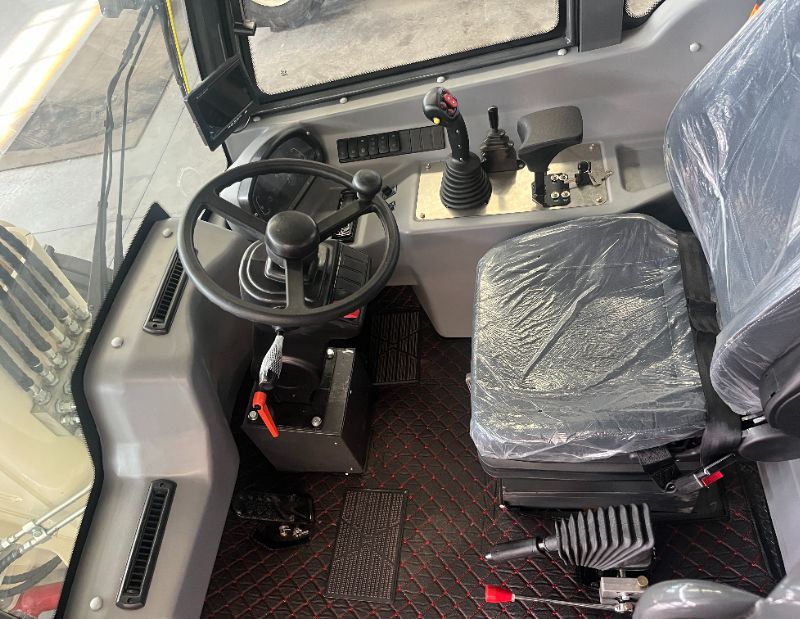

More comfortable and spacious cab interior to meet customer needs, the spacious cab is especially suitable for tall people and can prevent knees from hitting the front
High-strength steel plates are more sturdy and durable and Yield strength 1000 megapascals. inner lining plate bent at 90 degrees with 90° iron sheet for convenient adjustment.

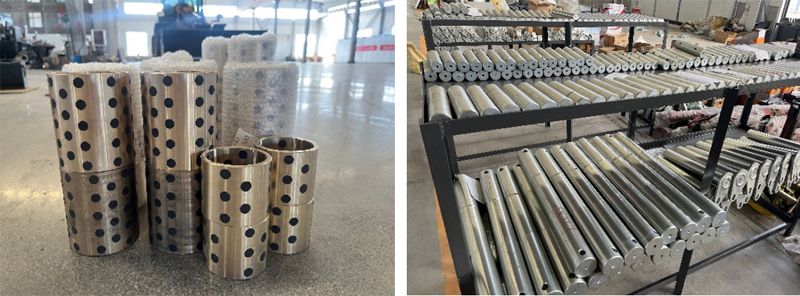

Graphite bushings are wear-resistant and do not require grease, increasing service life.

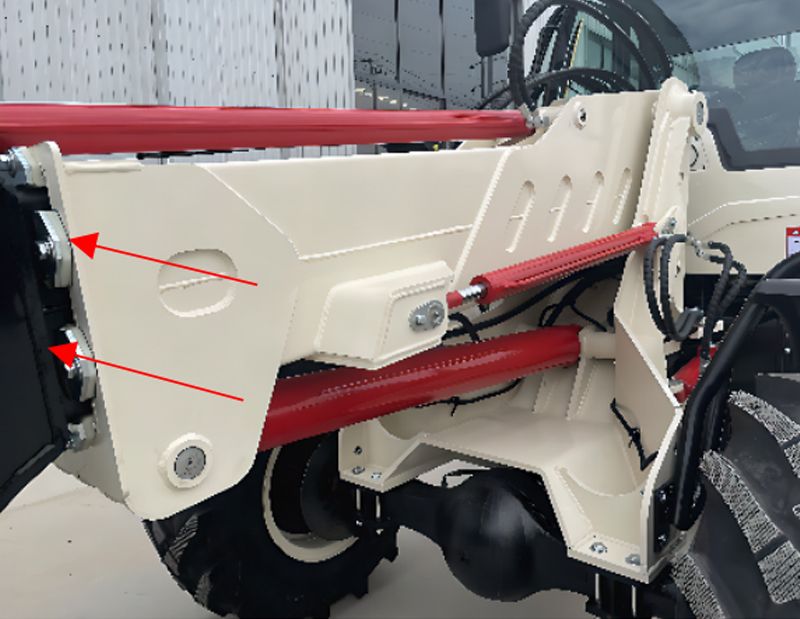

Made of 40Cr material, with quenching and tempering + medium frequency treatment, it is more sturdy and durable than ordinary pins.

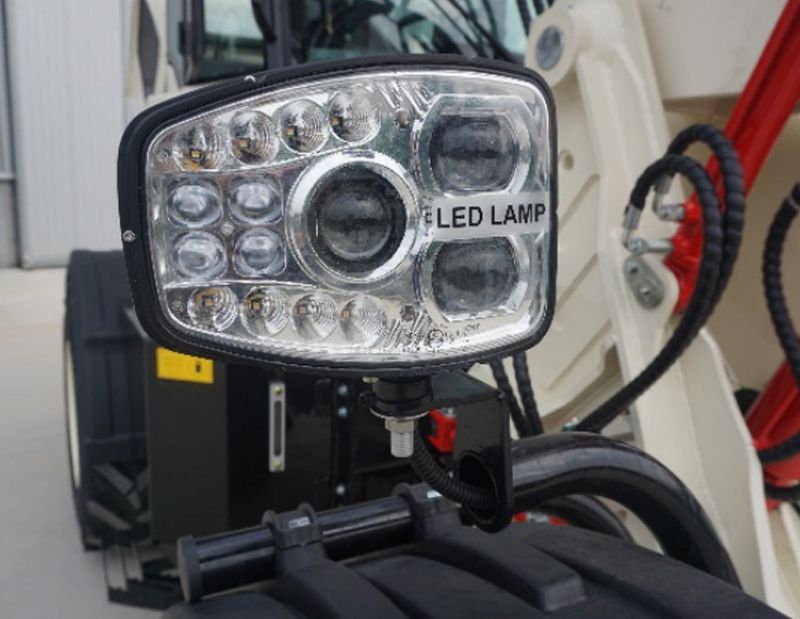

High-brightness LED lights.

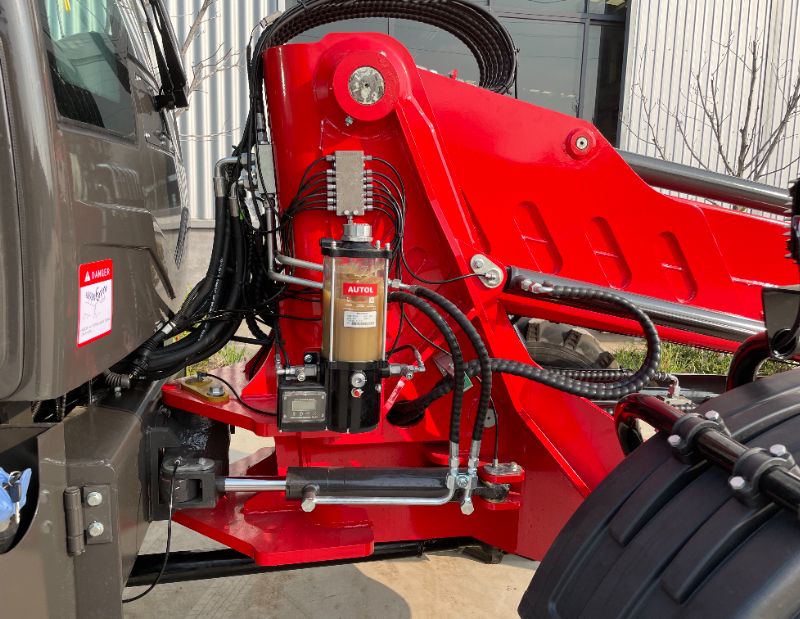

Central lubrication system. It is used to automatically, regularly and quantitatively supply lubricants to multiple lubrication points of mechanical equipment, saving time for customers and enabling better maintenance of the machines.
Standard configuration:
Xinchai498 EURO3, 36.8kw,the big cab like the pic, rear open engine cover, 23.5/70-16 tire,4-HYDRAULIC joystick, Electric quick hitch, forward and rear, high and low speed, all be controlled by electric, rearview camera, ELECTRICAL TELESCOPIC ARM, electric 4WD, Hydraulic torque converter drive (2 forward, 2 backwards), full automatic, standard bucket (0.9m3), adjustable instrument, Adjustable seat, disc brake system, engine preheating heater, bucket can be level automatic, waterproof plug-in, back sound, radio, fan, extinguisher, window hammer, 220v engine heater, lifting height with fork is 4300mm, dump height is 3800mm, speed30km/h, The tipping angle of the bucket is 40, lifting capacity is 1800kgs, operation weight is 5680kgs,Free service spare parts
Specification of telescopic loader 18T
| Performance | rated loading (kg) | 1800kgs | ||
| overall weight (kg) | 5680kgs | |||
| rated bucket capacity (CBM) | 0.9 | |||
| most lift height（mm） | 4300 | |||
| maximum dump height（mm） | 3800 | |||
| overall dimension (L×W×H) （mm） | 5550*1900*2650 | |||
| minimum turning radius（outside of wheels）（mm） | 3680 | |||
| Engine | Model | XINCHAI EURO3/YUNNEI EURO V/YAMMAR EURO V/ KOHLER EURO V/Fiat EURO V /CUMMINS EPA 4 | ||
| type | lnline water cooled, four stroke | |||
| No. of cylinder-bore/stroke （mm） | 4-102×118 | |||
| min fuel-consume ratio | ≤230g/kw.h | |||
| Transmission system | gearbox mode | Power shift normally engaged straight gear | ||
| maximum speed | 30-38km/h | |||
| Drive axles | main reducing mode | Hub reduction axle | ||
| wheel base (mm) | 2320 | |||
| wheel tread(mm) | 1900 | |||
| Brake system | parking brake | Air-assist hydraulic brake, disc brake | ||
| parking brake | Manual disc brake | |||
| Tyre | type specification | 23.5/70-16 | ||
| front tyre pressure （kPa） | 350 | |||
| rear tyre pressure （kPa） | 350 | |||
