With the articulated pendulum joint, all four wheels maintain traction even on uneven terrain. This increases the productivity of the machine and gives the driver optimal control.

Telescopic Loader 25T
Telescopic Loader 25T
Telescopic Loader 25T
Telescopic Loader 25T
Telescopic Loader 25T
Telescopic Loader 25T
Telescopic Loader 25T
Features
Maximum traction through articulated pendulum joint
Maximum traction through articulated pendulum joint

• With the articulated pendulum joint, all four wheels maintain traction even on uneven terrain. This increases the productivity of the machine and gives the driver optimal control.
The optimal ratio of articulation and oscillation angle ensures a high level of grip on the ground. This makes the machine easy to maneuver.

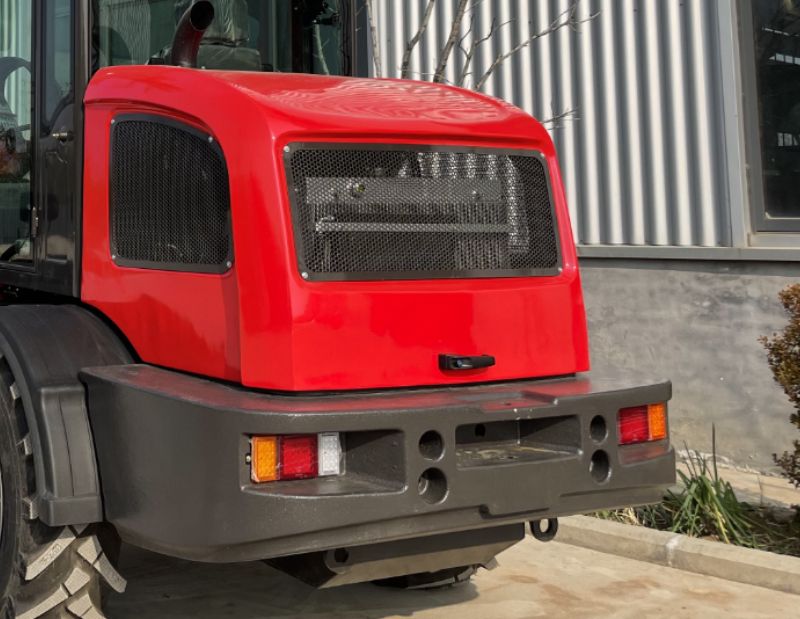

Iron cast counterweight, looks more neo-modern, It makes the appearance of the entire vehicle have higher aesthetic value and visual enjoyment, to attract more customers' attention and provide more added value for customers.

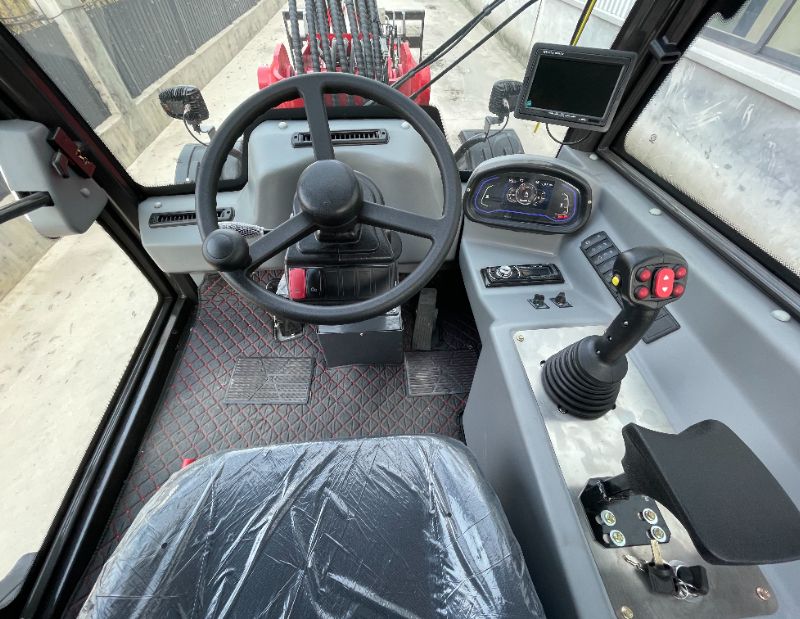

More comfortable and spacious cab interior to meet customer needs, the spacious cab is especially suitable for tall people and can prevent knees from hitting the front

High-strength steel plates are more sturdy and durable and Yield strength 1000 megapascals. inner lining plate bent at 90 degrees with 90° iron sheet for convenient adjustment.

Graphite bushings are wear-resistant and do not require grease, increasing service life.

Made of 40Cr material, with quenching and tempering + medium frequency treatment, it is more sturdy and durable than ordinary pins.

High-brightness LED lights.

Central lubrication system. It is used to automatically, regularly and quantitatively supply lubricants to multiple lubrication points of mechanical equipment, saving time for customers and enabling better maintenance of the machines.

Specification

Standard configuration:

Changchai4G33, 70kw,the big cab like the pic, rear open engine cover, 16/70-20 tire,4-HYDRAULIC joystick, Electric quick hitch, forward and rear, high and low speed, all be controlled by electric, rearview camera, ELECTRICAL TELESCOPIC ARM, electric 4WD, Hydraulic torque converter drive (2 forward, 2 backwards), full automatic, standard bucket (1.1m3), adjustable instrument, Adjustable seat, disc brake system, engine preheating heater, bucket can be level automatic, waterproof plug-in, back sound, radio, fan, extinguisher, window hammer, 220v engine heater, lifting height with fork 5000mm, dump height is 4330mm, speed30km/h, The tipping angle of the bucket is 40, lifting capacity is 2500kgs, operation weight is 6700kgs, Free service spare parts


Specification of telescopic loader 25T


Performancerated loading (kg)2500kgs
overall weight (kg)6700kgs
rated bucket capacity (CBM)11
most lift height(mm)5000
maximum dump height(mm)4300
overall dimension (L×W×H) (mm)6700*2070*2680
minimum turning radius(outside of wheels)(mm)4400
EngineModelXINCHAI EURO3/YUNNEI EURO V/YAMMAR EURO V/ KOHLER EURO V/Fiat EURO V /CUMMINS EPA 4
typelnline water cooled, four stroke
No. of cylinder-bore/stroke (mm)4-102×118
min fuel-consume ratio≤230g/kw.h
Transmission systemgearbox modePower shift normally engaged straight gear
maximum speed30-38km/h
Drive axlesmain reducing modeHub reduction axle
wheel base (mm)2600
wheel tread(mm)2100
Brake systemparking brakeAir-assist hydraulic brake, disc brake
parking brakeManual disc brake
Tyretype specification16/70-20
front tyre pressure (kPa)350
rear tyre pressure (kPa)350


Telescopic Loader 25T
