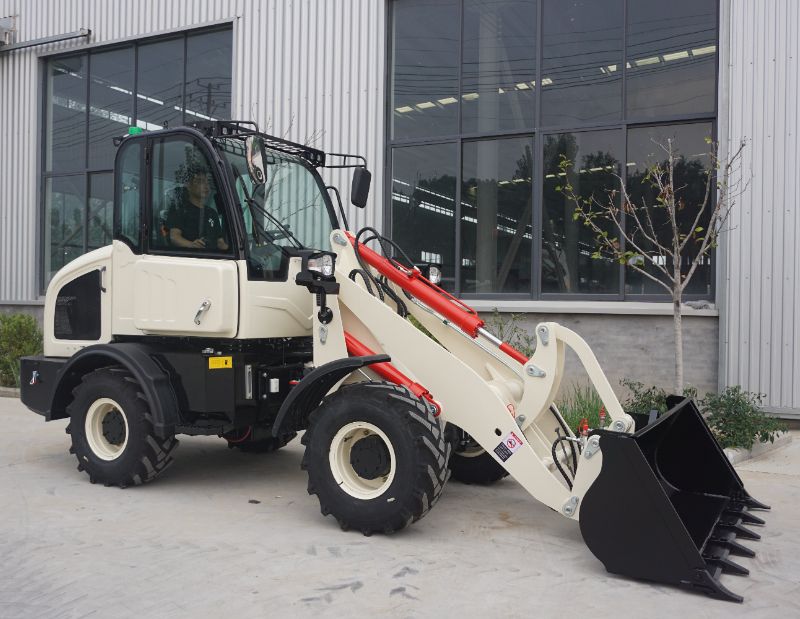

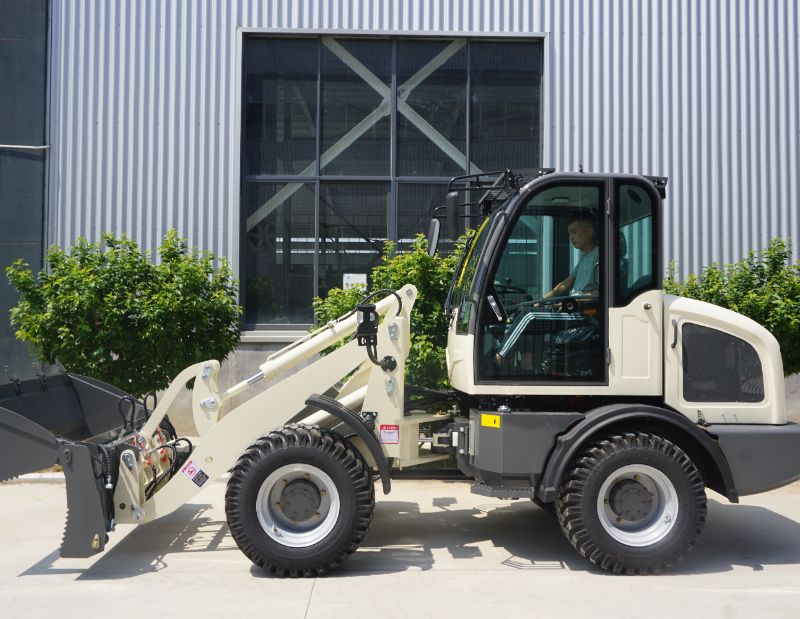

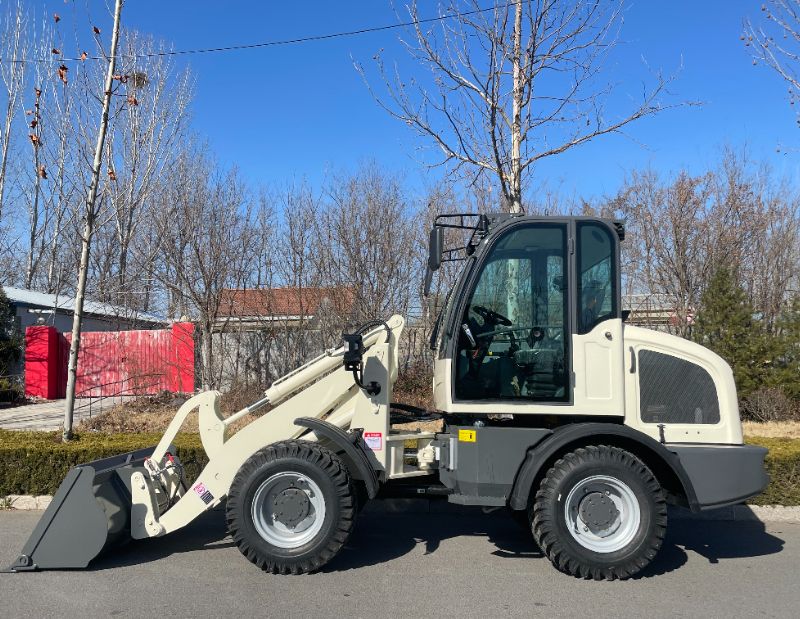

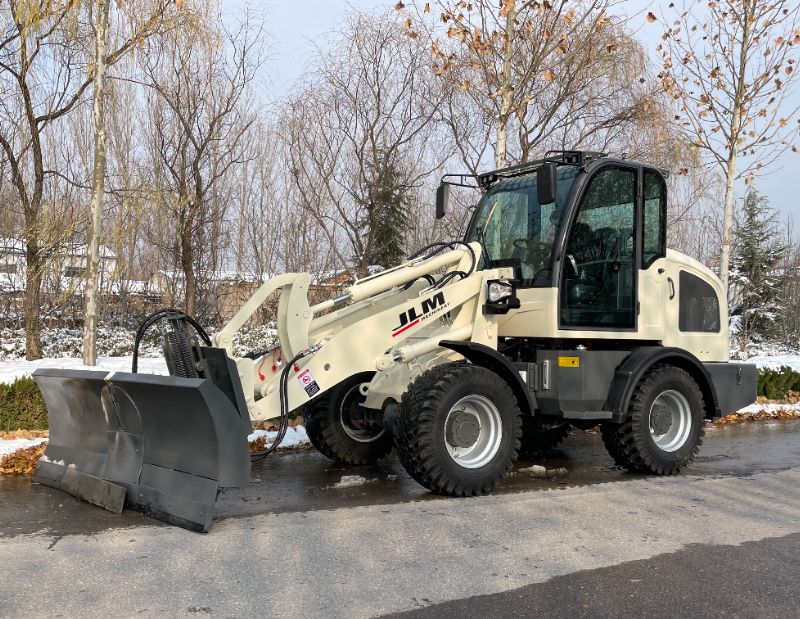

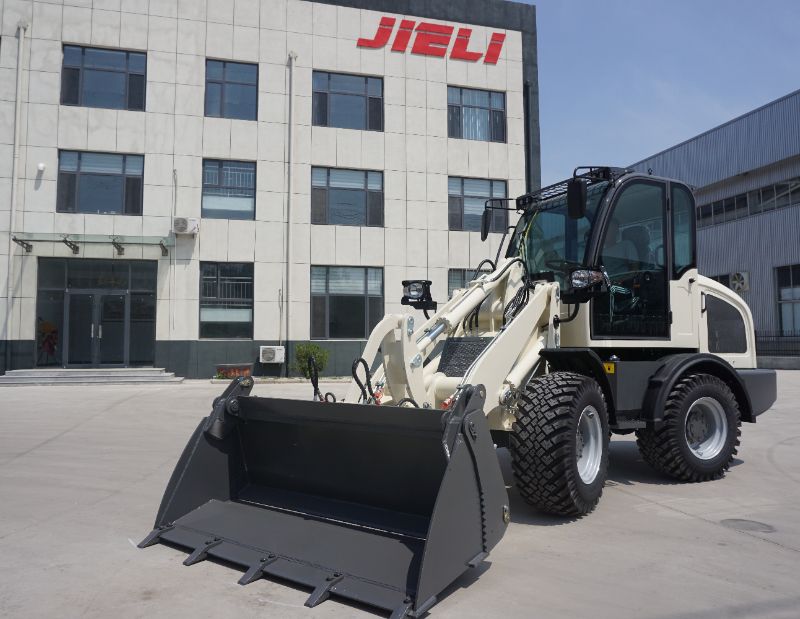

Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B

Wheel Loader 15B

With the articulated pendulum joint, all four wheels maintain traction even on uneven terrain. This increases the productivity of the machine and gives the driver optimal control.

Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Wheel Loader 15B
Features

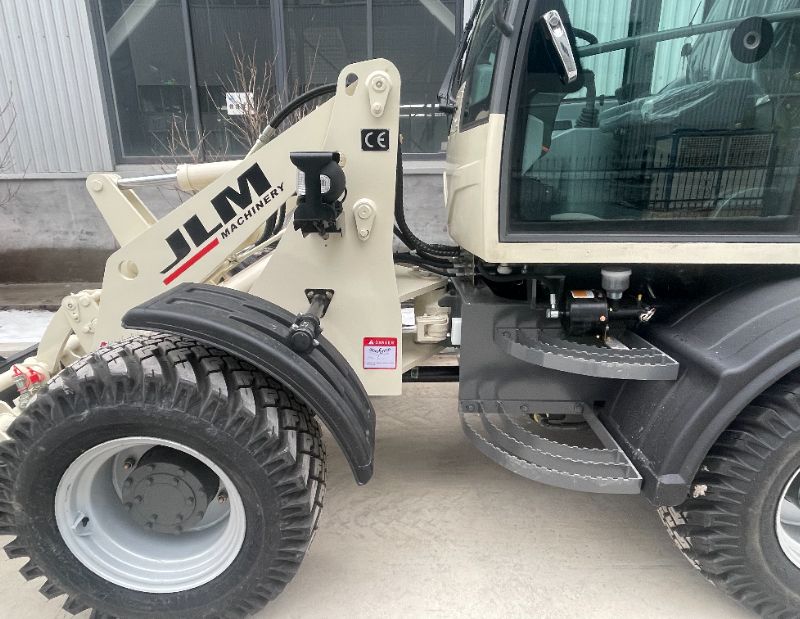

Maximum traction through articulated pendulum joint
Maximum traction through articulated pendulum joint

• With the articulated pendulum joint, all four wheels maintain traction even on uneven terrain. This increases the productivity of the machine and gives the driver optimal control.
The optimal ratio of articulation and oscillation angle ensures a high level of grip on the ground. This makes the machine easy to maneuver.
Even in confined spaces, there is no collision between the front and rear of the machine.


• The front and rear sections can swing independently of each other. This allows the driver to react sensitively to any unevenness. This increases comfort and creates a safe driving experience

Compact size and optimal driveability, because of the special articulated pendulum joint, It has a very good turning angle, so it is most suitable for operation in a narrow space to exert its maximum value.

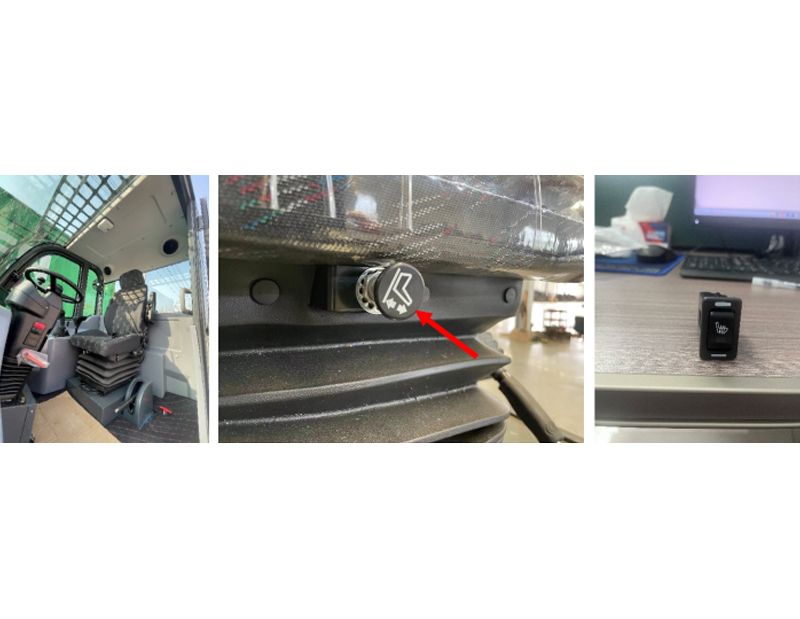

Heating chair with airbag , it provide different demand for customers, If the customers are especially those living in Nordic countries, like Denmark, Norway, Sweden, Finland and Iceland, you can choose it, others choose the standard one is ok

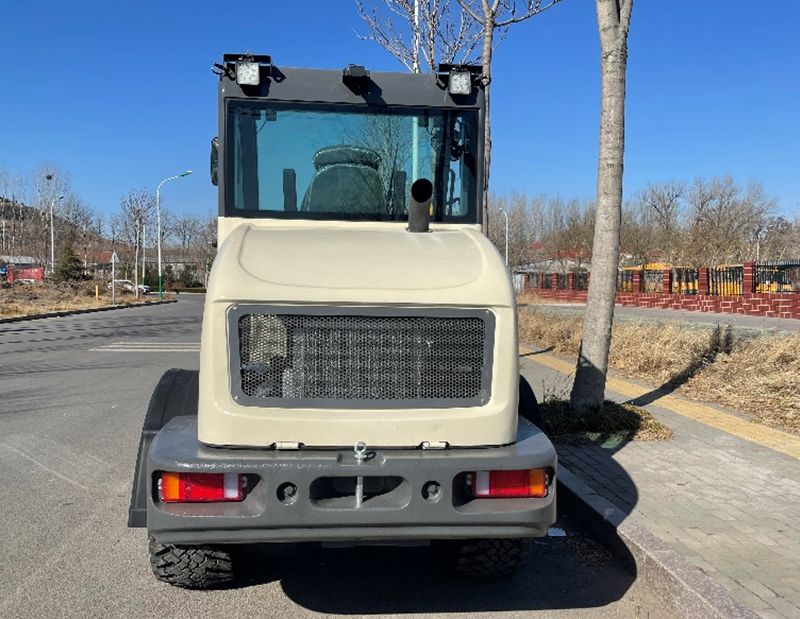

Iron cast counterweight, looks more neo-modern, It makes the appearance of the entire vehicle have higher aesthetic value and visual enjoyment, to attract more customers' attention and provide more added value for customers.

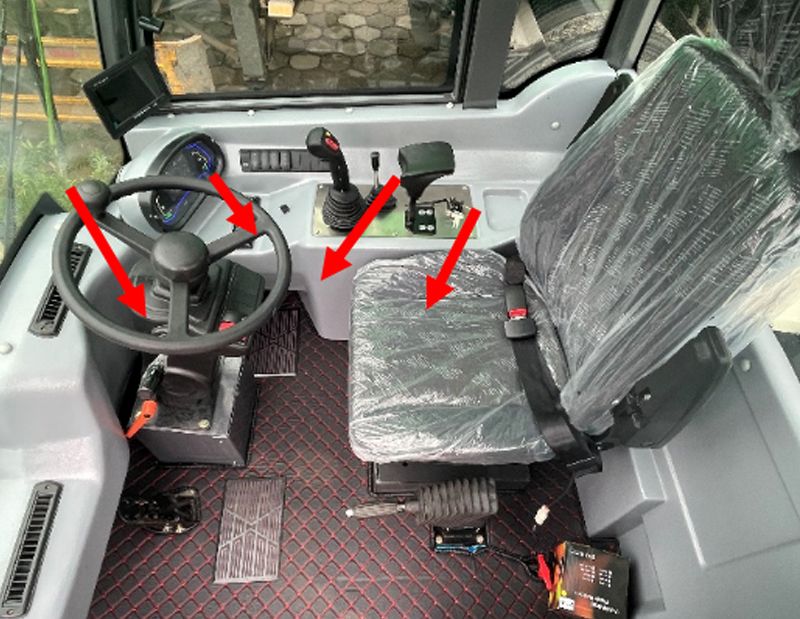

More comfortable and spacious cab interior to meet customer needs

Double Cup holder, electronic box cigarette lighter 12V, diesel heating of under chair

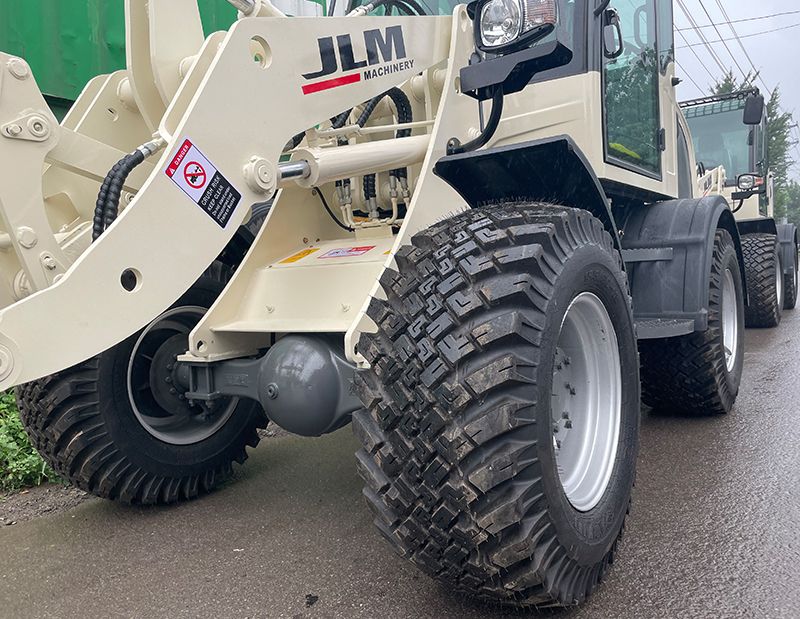

Option winter tire, especially in the northern Europe

Specification

Standard configuration:

Bigger cabin or small cabin, new type, engine hood, xinchai498 engine 36.8kw, 20.5/70-16 tire, level standard bucket (0.8m3) with floating function, 0.8m3 bucket, drum brake, adjustable steering, wheel, standard seat, preheating + heater for cabin, LED lamp on cabin, waterproof, plug-in, back sound, radio, fan, extinguisher, window hammer, engine, heater 220V,single steering cylinder, 3- way mechanic joystick, quick hitch, rear camera, unloading height is 2700mm, lifting capacity 1500kgs, operation weight 4200kgs

Overall dimension: 5000*1850*2650(mm)


Specification of ZL15B
ModelWheel loader 15B
Rated load(kg)1500
Engine modelXinchai 498 BT1 (Euro3), standard engine
Option engineYunnei EURO 5/CUMMINE EPA4/Fait EURO 5 or EPA4/Yarman EURO5/Kohler EURO 5 or EPA4
Engine TypeFour strokes, Water cooling, Inline, injecting combustion chamber
Overall dimensions(mm)5000*1850*2650(mm)
Rated Speed2400 r/min(rpm)
Selfweight4200kgs
Bucket capacity0.8(m3)
Bucket width2000mm
Turning radius3500mm
Wheel distance2700mm
Axle-base(mm)2000
Drive waysfour are drive
Service BrakeAir-assist Hydraulic, Disc Brake
Torque Converter ModelYJ280
Gear Shift2 forward & 2 reverse shift or 4 forward & 4 reverse shift
Tyre size20.5/70-16
