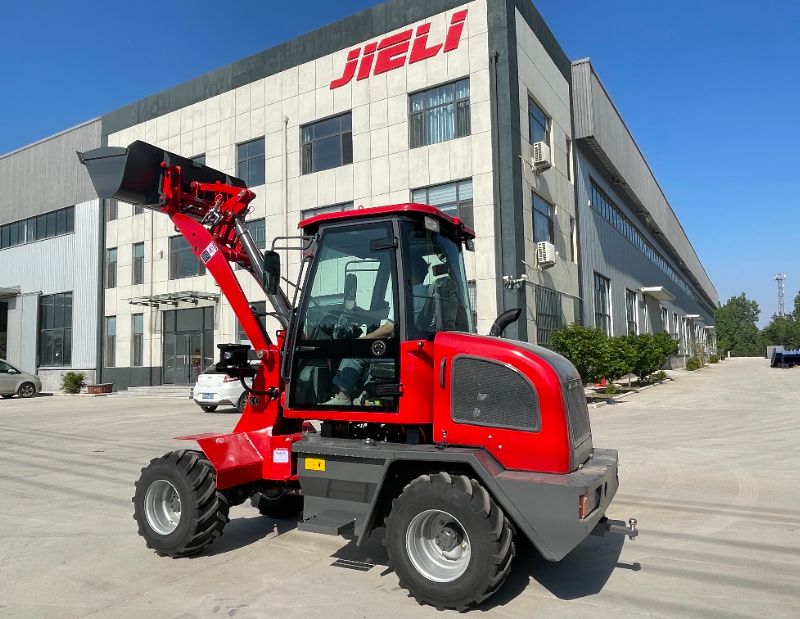

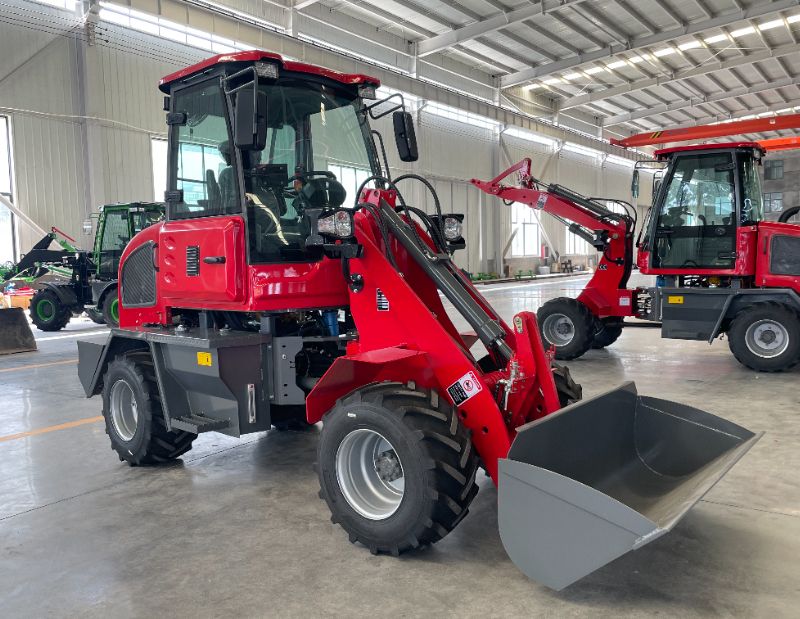

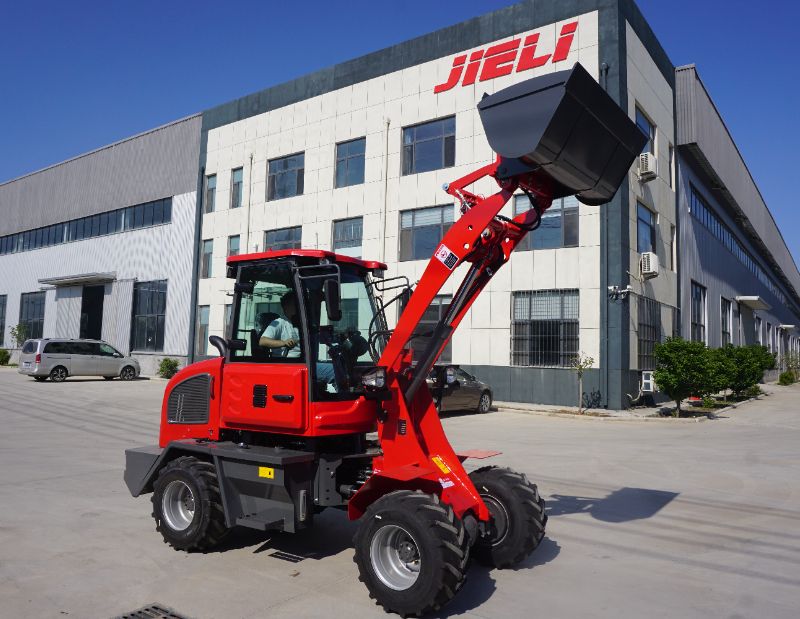

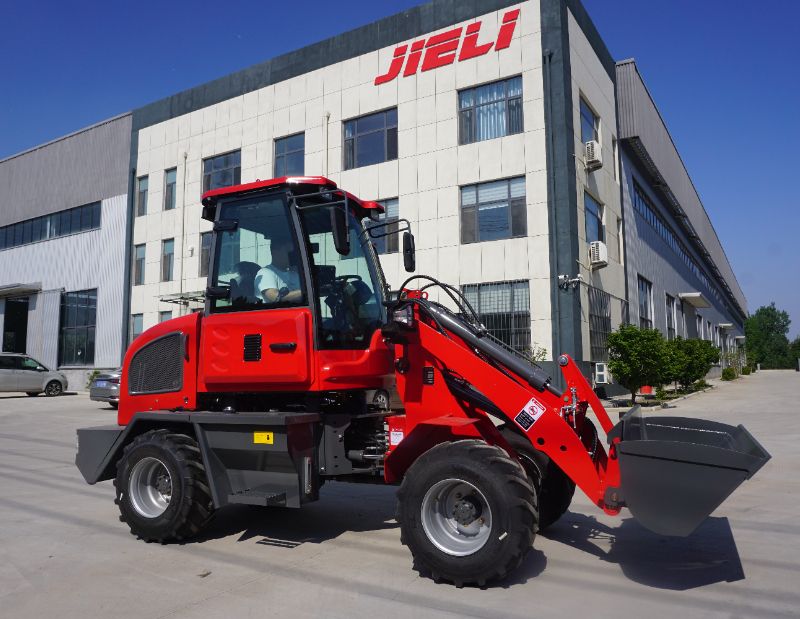

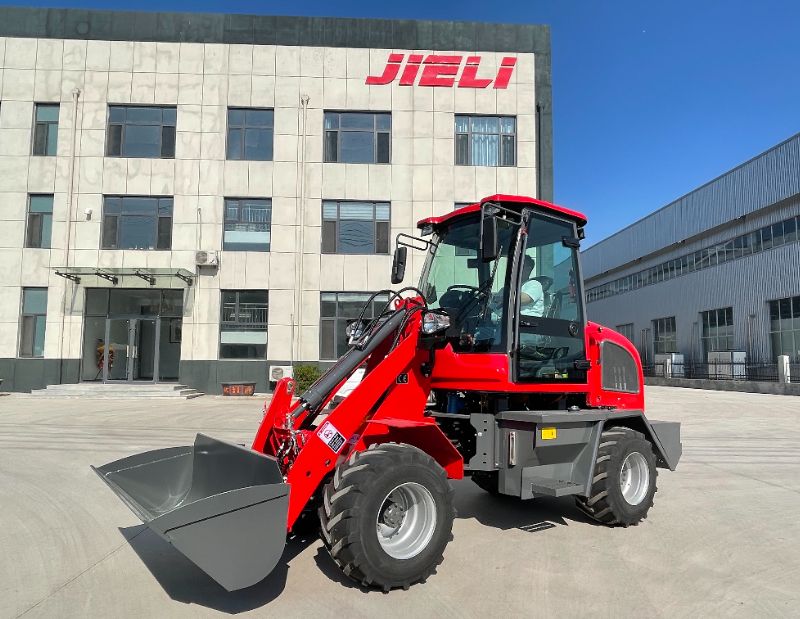

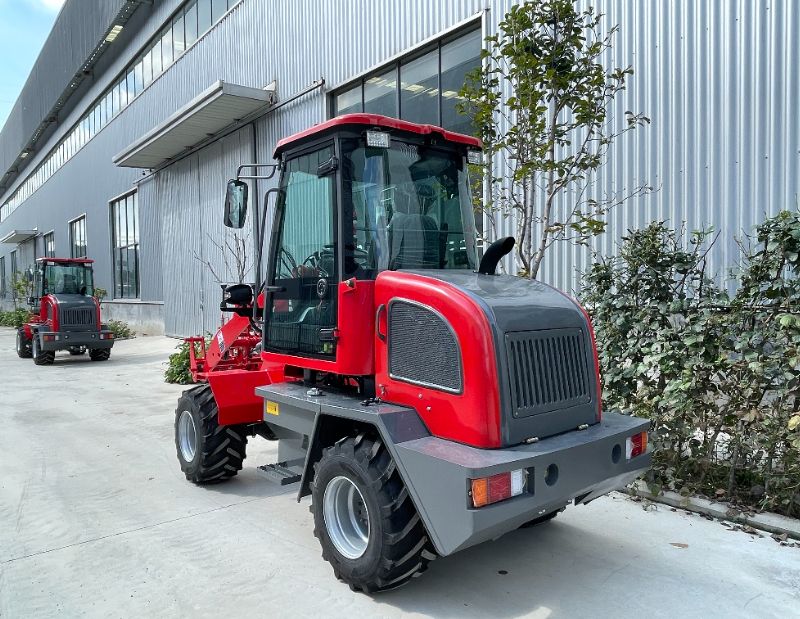

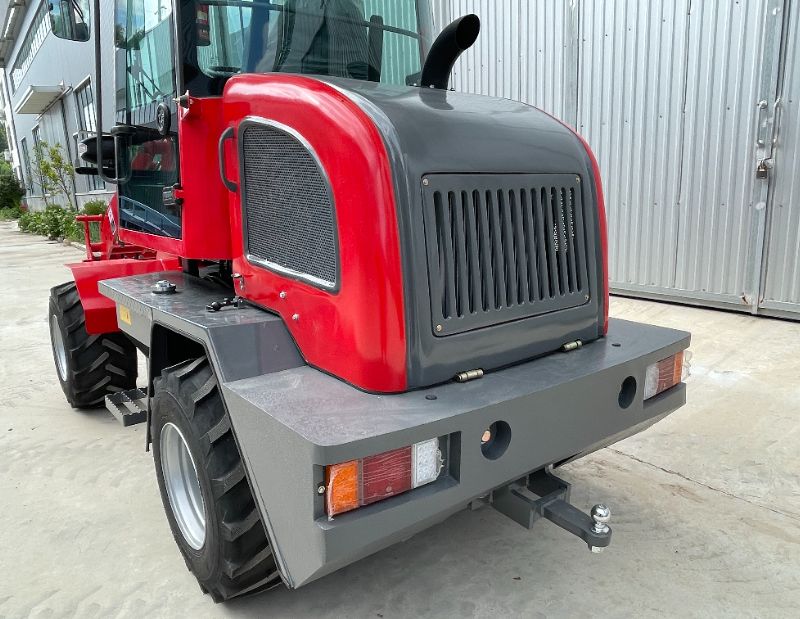

A small Compact mini loader, Widely used in garden and farms, It can be equipped with different attachments and does well

Wheel Loader ZL10
Wheel Loader ZL10
Wheel Loader ZL10
Wheel Loader ZL10
Wheel Loader ZL10
Wheel Loader ZL10
Wheel Loader ZL10
Wheel Loader ZL10
Features

A small Compact mini loader, Widely used in garden and farms, It can be equipped with different attachments and does well

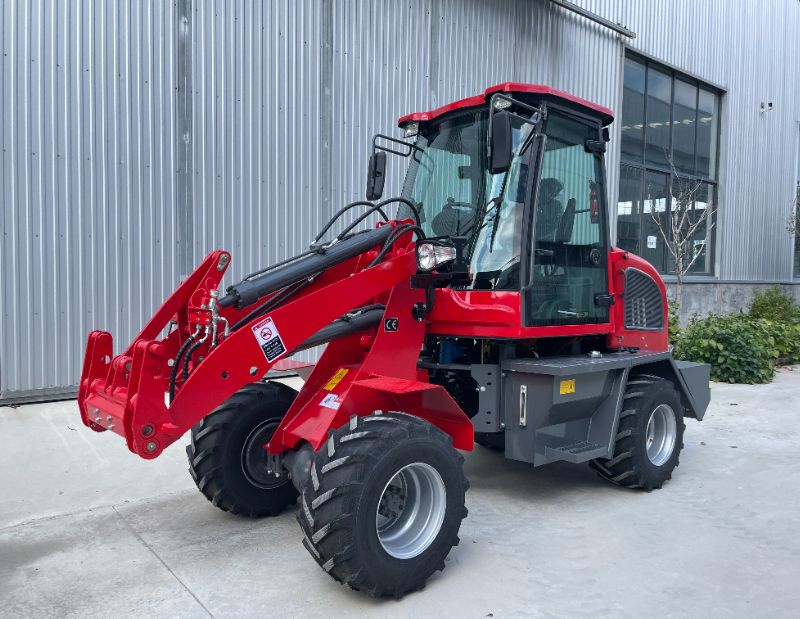

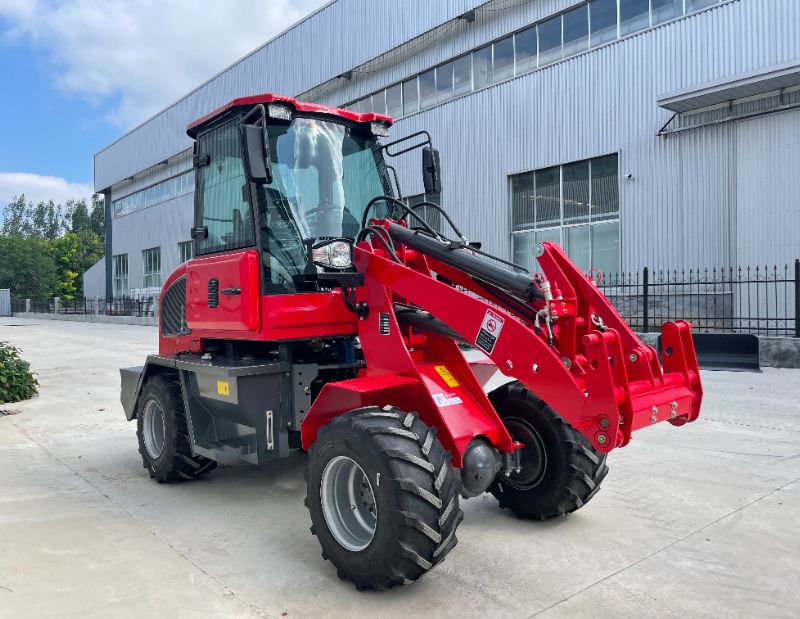

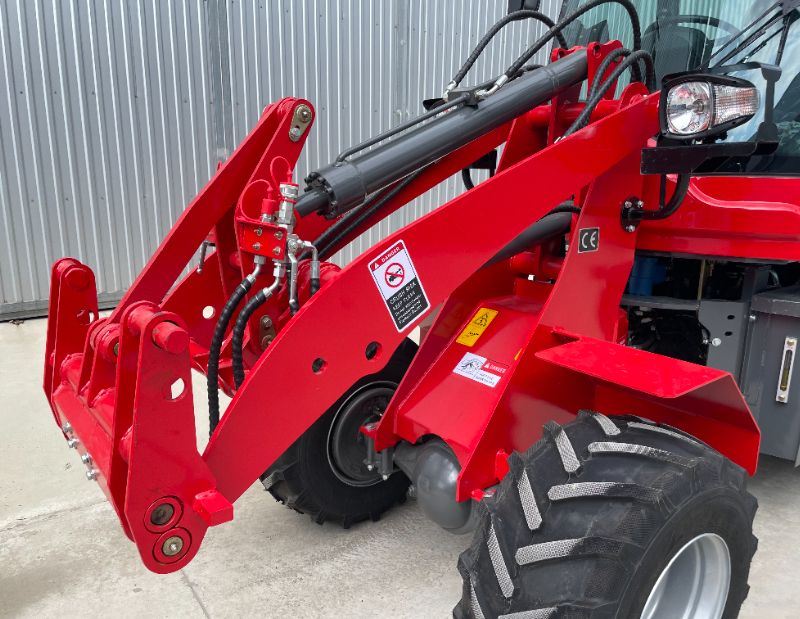

Although it has only one lifting cylinder, but it is more thicker and more powerful

The whole frame is strong

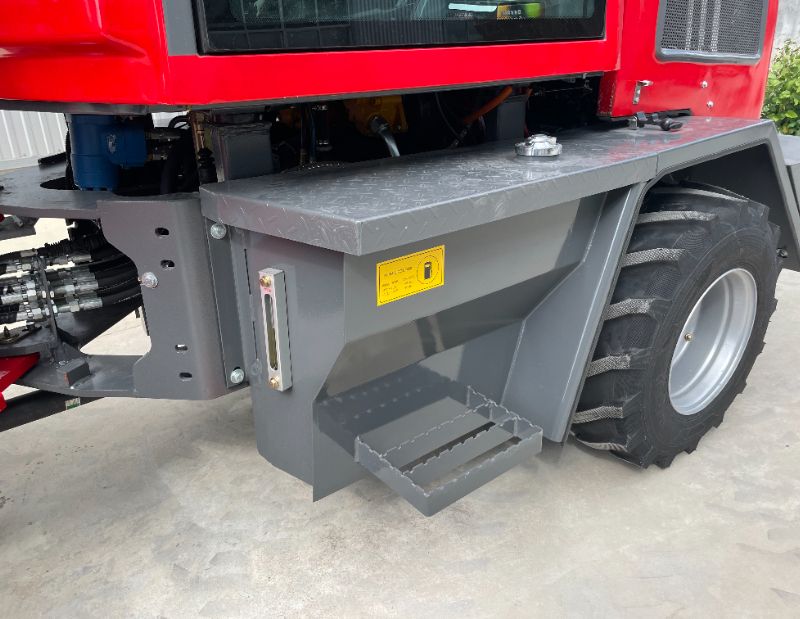

With the lock tank more safe

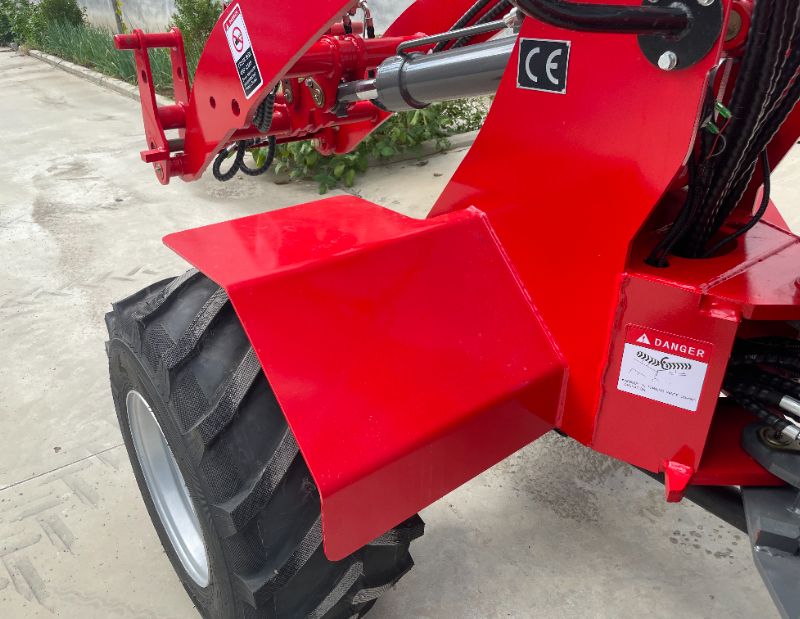

Front tires are covered with steel mud tiles is not easy broken and use-life is longer

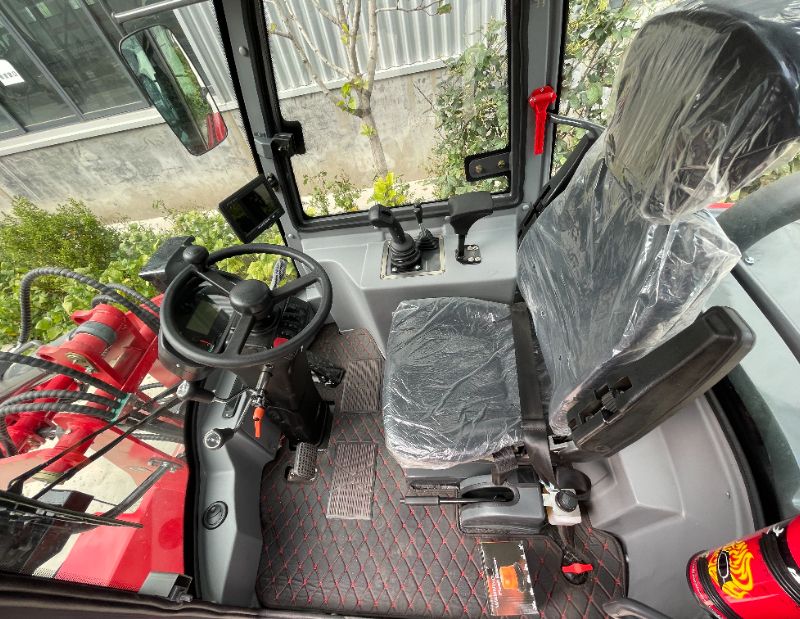

Comfortable cab interior, heater and preheater, back sound, radio, fan, extinguisher, window hammer, 220v engine heater

Specification

Standard configuration:

31*15.5-15 wider farm tractor tire, Xichai4102, 33kw, diesel, 4 cylinders, quick hitch, 3-way mechanical joystick, floating, function, including standard bucket(0.4m3), waterproof plug-in, back sound, radio, fan, extinguisher, window hammer, engine heater 220V, standard lamp on side of front frame, rear camera, cabin heating and preheater

Unloading height: 2200mm, Liftingcapacity: 1000kgs,

operation weight: 2900kgs, Overall dimension:

4200*1550*2520(mm)


Specification of  ZL10
ModelWheel loader 10
Rated load(kg)1000
Engine modelXichai33kw, standard engine
Option engineYunnei EURO 5/CUMMINE EPA4/Fait EURO 5 or EPA4/Yarman EURO5/Kohler EURO 5 or EPA4
Engine TypeFour strokes, Water cooling, Inline, injecting combustion chamber
Overall dimensions(mm)4200*1580*2520(mm)
Rated Speed2400 r/min(rpm)
Selfweight2800kgs
Bucket capacity0.5(m3)
Bucket width1600mm
Wheel distance2320mm
Axle-base(mm)2000
Drive waysfour are drive
Service BrakeAir-assist Hydraulic
Torque Converter ModelYJ280
Gear Shift2 forward & 2 reverse shift or 4 forward & 4 reverse shift
Tyre size31*15.5-15


Wheel Loader ZL10
